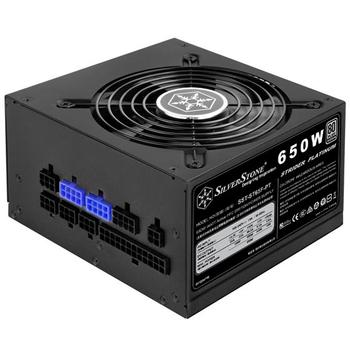

SILVERSTONE ST65F-PT - strømforsyning

ST65F-PT

• Compact design with a depth of 140mm for easy integration
• High efficiency with 80 PLUS Platinum certification
• 100% modular cables
• 24/7 continuous power output with 40℃ operating temperature
• Class-leading single +12V rail
• Strict ±3% voltage regulation and low ripple & noise
• Ultra silent 120mm fan with intelligent semi-fanless operation
• Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.1)

• SST-ST65F-PT

• 650W

• 360W per liter

• +3.3V /22A
• +5V /22A
• +12V /54.2A
• +5VSB /3.0A
• -12V/0.3A

• Black（Lead-Free Paint）

• 120W

• 650W

• 90V~264V

• 47Hz~63Hz

• Active PFC（PF>0.9 at full load）

• 89%~92% at 20%~100% loading

• 100,000 hours

• 0°C ~ 40°C

• Over current protection
• Over power protection
• Over voltage protection
• Under voltage protection
• Over temperature protection
• Short circuit protection

• 1 x 24 / 20-Pin motherboard connector（550mm）
• 1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm)
• 4 x 8 / 6-Pin PCIE connector（"550mm / 150mm"x2）
• 8 x SATA connector（"600mm / 150mm / 150mm /150mm"x2）
• 6 x 4-Pin Peripheral connector（"600mm / 150mm / 150mm"x2）
• 2 x 4-Pin Floppy connector（"600mm / 150mm / 150mm / 150mm"x2）

• Single 120mm silent fan

• ATX

• 0 ~ 28 dBA

• 150 mm (W) x 86 mm (H) x 140 mm (D)
• 5.91" (W) x 3.39" (H) x 5.51" (D)

• 2.18 kg

• 80 PLUS Platinum

• Compatible with ATX12V v2.4
